Munsell CAPSURE Color Matching Tool Munsell RM200SOIL 7640111925200
Munsell Logo

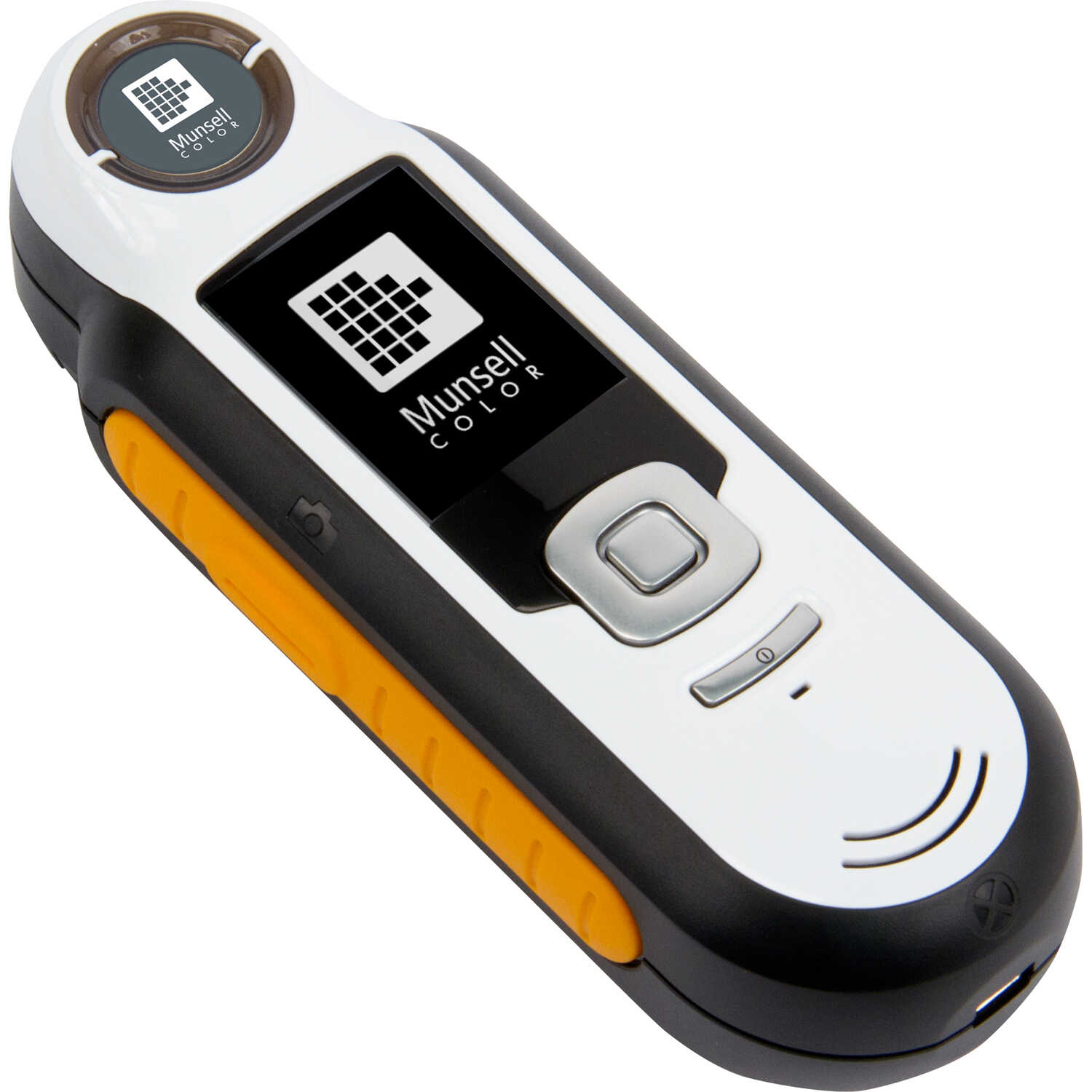

Munsell CAPSURE Color Matching Tool

Digitally match soil colors to Munsell Soil Color Book specifications

Availability: In Stock
Stock Number: 77391
Ben Meadows:
  • Description
  • Specifications
  • Reviews(1)
  • Q&A
  • Documents
  • Videos (1)
Munsell CAPSURE Color Matching Tool

This handheld meter provides an affordable way to evaluate the type of soil that is present within a given area. The instrument allows users to make accurate soil color evaluations in the field quickly and easily. The soil classification system that has been developed around the Munsell Color System is an established and accepted process to assign a soil type. This classification system has been used in the United States for more than 55 years to aid in the management and stewardship of natural resources. Includes all of the colors present in the Munsell Soil Color Book. Also includes Munsell's Rock Color, Plant Tissue Color, and Bead Color book libraries. Note keeping is also made easy with the ability to leave a voice-recorded note along with your measurement. The included Palette Application software allows you to automatically update the Munsell Soil Color Book library through CAPSURE sync.

Brand: Munsell
UPC: 7640111925200
UNSPSC: 41113900

Illumination Colors: 25 LED (8 x visible wavelengths, 1 x UV). Lamp Life: >10 million flashes. Light Source: Independent tri-directional 25 LED (8 x visible wavelengths, 1 x). Instrument Display: 45mm Color TFT. Measurement Time: 1.8 seconds. Calibration: Integrated white calibration slider. Operating Temperature Range: 32°F to 104°F. Storage Temperature Range: -4°F to 140°F. Battery: 3.7V Lithium Ion Rechargeable. Battery Life: 5 hours continuous, 100 hours standby. Dimensions: 5.7” x 2” x 1.6”. Weight: 5.8 oz.
Orange Star 1 of 5 Orange Star 2 of 5 Orange Star 3 of 5 Orange Star 4 of 5 Orange Star 5 of 5   5.0 of 5
1 of 1  would recommend this product to a friend.

Write a review for this product.

We encourage our customers to let us know what experiences they have had with our products, whether good or bad.  By submitting a review, you can share your experiences with others and also provide valuable feedback to us as well. With just a few simple steps, you can add your review of this product.

Thank you for sharing your review of this product.
An error has occured. Please try again.
– See Less
Orange Star 1 of 5 Orange Star 2 of 5 Orange Star 3 of 5 Orange Star 4 of 5 Orange Star 5 of 5   5 of 5

In the field, soil colors are supposed to be measured at noon in bright sunlight. Anything else related to sun angle, cloudiness, or pollution tends to produce redder hues. Those variations are virtually eliminated by the Capsure tool, which supplies its own light source. This works as long as the surface being examined is perfectly flat. Otherwise, ambient light can interfere. Dry peds work fine, but too-moist peds tend to stick to the 1-cm lens opening, which may require frequent cleaning. Field moist samples, which should be used instead, give much less trouble. The Capsure gives you a choice of three aperture widths (2 mm, 4 mm, and 8 mm), which allows one to get separate colors for mottles. Also, remember that Munsell chips tend to fade in the light, resulting in mostly lower chromas. You might need to replace those old chips. I tested the colorimeter on brand new 7.5YR and 10YR Munsell charts and found exact color matches with the colorimeter. Looks like the Capsure is a winner.
This reviewer would recommend this product to a friend.
