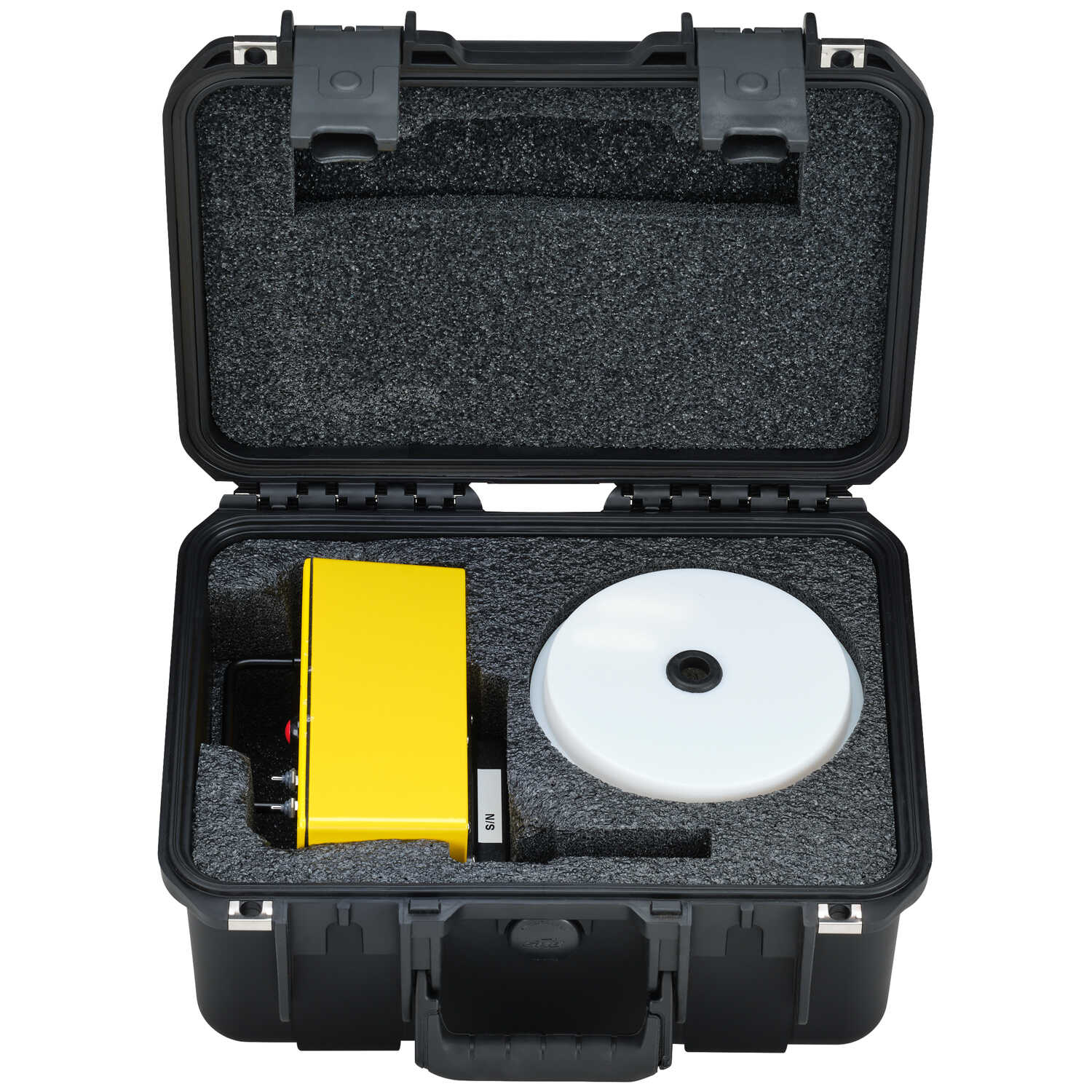

Ravensgate Model 300 Sonic Water Level Meter with Case

This self-contained, battery operated meter uses sound waves to measure well water level. Fast, accurate measurements are possible in the field or anywhere, without the use of down-hole instrumentation. Lightweight, compact, versatile, and easy to operate, the water level meter allows you to measure crooked wells, wells with cascading water, partially cased rock wells, wells with submersible pumps, capped or uncapped wells, wells with pipes and wires inside, plus you can even measure the length of coiled pipe. As long as the obstructions take up no more than half of the bore area, the meter will not suffer any loss of accuracy. The sonic water level meter should only be used on wells under 10 inches in diameter as the accuracy decreases with larger diameter wells.

*Under certain conditions, accuracy may exceed this limit; when the well casing is discontinuous; when the well casing is highly corroded or rough; when large obstructions e.g. pipe joints or wiring exceed half the area of the well casing; if the well casing is less than 2 inches or greater than 10 inches in diameter.
Brand: Ravensgate
MPN: 300 w/SKB CASE
UPC:
UNSPSC: 41114300
Weight:

Specifications Measurement Range: Normal 10-500’ or Deep up to 1200’. Readout Accuracy: +0.1’. Measurement Accuracy: +0.2% of reading*. Operating Temperature: 30°F to 140°F. Power: 8 AA dry cell batteries. Dimensions: (excluding sonic measuring duct) 7”L x 4”H x 5”W. Sonic Measuring Duct Diameter: 5/8”. Hole diameter must be at least large enough for 1/2 pipe thread. Sonic Measuring Duct Length: 2”. Weight: 3.5 lbs.
Be the first person to review this product.

We encourage our customers to let us know what experiences they have had with our products, whether good or bad.  By submitting a review, you can share your experiences with others and also provide valuable feedback to us as well. With just a few simple steps, you can add your review of this product.


Thank you for sharing your review of this product.
An error has occured. Please try again.
– See Less


Have a Question About This Product? Have A Question About This Product?
Ask a Question
Thank you. A representative will respond to you by email as soon as possible. Typically, we are able to respond within 1 business day.
An error has occured. Please try again.
– See Less

Is there a warranty on the Ravensgate Model 300? Is there a warranty on the Ravensgate Model 300?
The Ravensgate Water Level Meters have a 1-year manufacture's warranty on components and craftsmanship.
