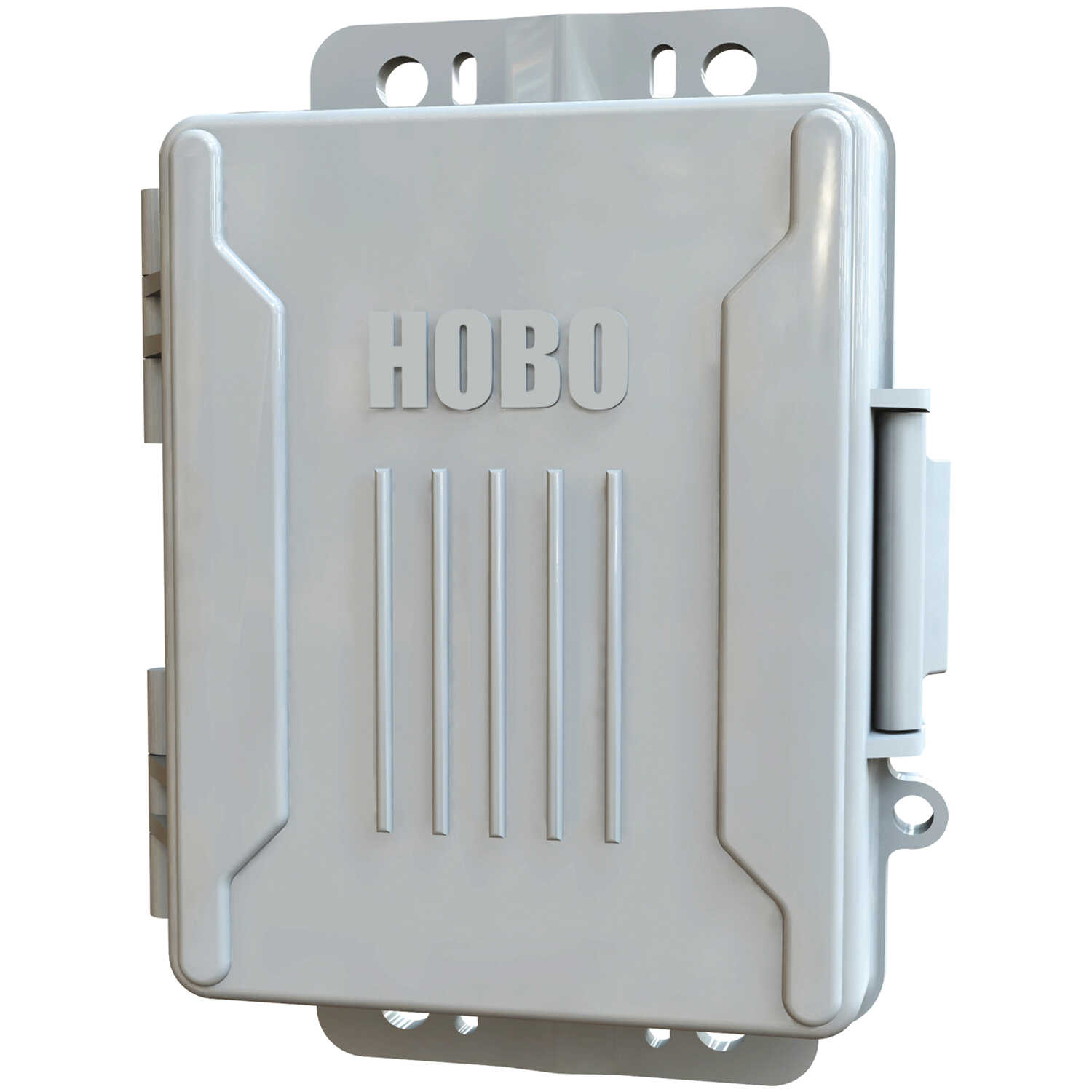

The Micro Station Data Logger is a smaller, more economical version of the full-size Weather Station Logger. Designed to fit into tight spaces, it is ideal for applications requiring multi-channel monitoring of microclimates in one or more locations. The Micro Station can be configured with up to 4 plug-in smart sensors (sold separately) for research-grade measurements. Operates up to one year on four AA batteries.
5.0 of 5
We encourage our customers to let us know what experiences they have had with our products, whether good or bad. By submitting a review, you can share your experiences with others and also provide valuable feedback to us as well. With just a few simple steps, you can add your review of this product.
5 of 5
For HOBO® Weather Station Logger
Data logging software designed for use with all HOBO data loggers and wireless data nodes. Software, USB interface cable, and manual included.
This temperature sensor features selectable measurement-averaging to improve accuracy. Features a stainless steel sensor tip and rugged cable rated for immersion in water up to 50°C for up to one year. Use of a Solar Radiation Shield (89354, sold separately) is strongly recommended. Specifications: Range: -40°C to 100°C (-40°F to 212°F). Accuracy: ±0.2°C from 0°C to 50°C (±0.36°F from 32°F to 122°F). Resolution: ±0.03°C from 0°C to 50°C (±0.054° from 32°F to 122°F). Drift: ±0.1°C (±0.18°F) per year. Response Time: < 2.5 minutes typical to 90% in 1 m/sec airflow. Sensor Dimensions: 0.28˝ x 1.5˝.
Tipping bucket with a stainless steel shaft with brass bearings. Aluminum housing and collector. Specifications: Measurement Range: 0 to 5˝ per hour, maximum 4,000 tips per interval. Calibration Accuracy: ±1.0% at up to 1˝/hour. Drift: requires annual field calibration. Cable Length: 2m. Dimensions: 9˝H x 6˝ dia.
Measures barometric pressure over a wide range and utilizes measurement averaging to obtain the highest accuracy. The weatherproof housing allows for mounting outside the station enclosure. The station maintains its weatherproof seal without having to be vented to the atmosphere. Includes zip ties for mounting on a mast. Can also be mounted on a flat surface using screws. Specifications: Range: 660 mbar to 1,070 mbar (19.47 in. Hg to 31.55 in. Hg). Accuracy: ±3.0 mbar (0.088 in. Hg) over full pressure range at 25°C (77°F); maximum error of ±5.0 mbar (0.148 in. Hg) over -40°C to 70°C (-40°F to 158°F). Resolution: 0.1 mbar (.003 in. Hg). Drift: 1.0 mbar (0.03 in. Hg) per year. Dimensions: 2.5˝ diameter x 2˝H.
Tipping bucket with a stainless steel shaft with brass bearings. Aluminum housing and collector. Specifications: Measurement Range: 0 to 12.7cm per hour, maximum 4,000 tips per interval. Calibration Accuracy: ±1.0% at up to 20mm/hour. Drift: requires annual field calibration. Cable Length: 2m. Dimensions: 9˝H x 6˝ dia.
Measures a 1-liter volume of soil with ±3% accuracy in most soils
Three-cup Lexan anemometer with Teflon bearings and hardened beryllium shaft. Requires cross arm mount. Specifications: Parameters: average wind speed, highest 3-second wind gust, average wind direction (unit vector average). Measurement Range: Wind Speed/Gust, 0 to 76 m/s (0 to 170 mph); Wind Direction, 0 to 355°, 5° dead band. Maximum Wind Speed Survival: Wind Speed/Gust, 76 m/s (170 mph); Wind Direction, 67 m/s (150 mph). Accuracy: Wind Speed/Gust, ±1.1 m/s (±2.4 mph) or ±4% of reading, whichever is greater; Wind Direction, ±5°. Resolution: Wind Speed/Gust, 0.5 m/s (1.1 mph); Wind Direction, 1.4°. Starting Threshold: Wind Speed/Gust, 1.0 m/s (2.2 mph); Wind Direction, 1.0 m/s (2.2 mph). Length of Smart Sensor Network Cable: 0.5m (1.6´). Operating Temperature Range: Wind Speed/Gust, -40°F to 167°F (-40°C to 75°C); Wind Direction, -40°F to 158°F (-40°C to 70°C).
Preconditioned for consistent, reliable measurements. Painting or coating not required. Includes 3m cable and mounting bracket.
This temperature sensor features selectable measurement-averaging to improve accuracy. Features a stainless steel sensor tip and rugged cable rated for immersion in water up to 50°C for up to one year. Use of a Solar Radiation Shield (89354, sold separately) is strongly recommended. Specifications: Range: -40°C to 100°C (-40°F to 212°F). Accuracy: ±0.2°C from 0°C to 50°C (±0.36°F from 32°F to 122°F). Resolution: ±0.03°C from 0°C to 50°C (±0.054° from 32°F to 122°F). Drift: ±0.1°C (±0.18°F) per year. Response Time: < 2.5 minutes typical to 90% in 1 m/sec airflow. Sensor Dimensions: 0.28˝ x 1.5˝.
Measures temperature and relative humidity. All sensor parameters are stored inside the Smart Sensor, and configuration data information is communicated to the logger without any programming, calibration, or extensive setup needed. Requires protection from rain or direct splashing. Use of a Solar Radiation Shield (89354, sold separately) is strongly recommended. Specifications: Range: Temperature, -40°C to 75°C (-40°F to 167°F); Relative Humidity, 0 to 100% RH at -40°C to 75°C (-40°F to 167°F), exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%. Accuracy: Temperature, ±0.2°C over 0°C to 50°C (0.36°F over 32°F to 122°F); Relative Humidity, ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5%. Resolution: Temperature, 0.02°C at 25°C (0.04°F at 77°F); RH, 0.1% RH at 25°C (77°F). Drift: Temperature, <0.1°C (0.18°F) per year; RH, <1% per year typical, hysteresis 1%. Response Time: Temperature, 5 minutes in air moving 1 m/sec; Relative Humidity, 10 minutes in air moving 1 m/sec with protective cap. Environmental Rating Weatherproof: 0 to 100% RH intermittent condensing environments. For best results, the Temp/RH Smart Sensor should be mounted inside a protective enclosure such as a Solar Radiation Shield (sold separately). Sensor Dimensions: 0.39˝ x 1.39˝.
Measures a 0.3 liter volume of soil with a ±3% accuracy in typical soil conditions
Tipping bucket with magnetic reed switch pivots on metal shaft. UV-stabilized ABS plastic housing. Specifications: Measurement Range: 0 to 10.2cm per hour, maximum 4,000 tips per interval. Accuracy: ±4.0%, ±1 rainfall count between 0.2mm and 50.0mm per hour; ±5.0%, ±1 rainfall count between 50.0mm and 100.0mm per hour. Drift: requires annual field calibration. Length of Smart Sensor Network Cable: 0.5m (1.6´). Dimensions: 9.5˝H x 6.5˝ dia.
Features three polycarbonate wind cups, UV-resistant ABS wind vane, and black-anodized aluminum anemometer arm. Specifications: Parameters: average wind speed, highest 3-second wind gust, average wind direction (unit vector average). Measurement Range: Wind Speed/Gust, 0 to 76 m/s (0 to 170 mph); Wind Direction, 0 to 355°. Accuracy: Wind Speed/Gust, ±1.1 m/s (±2 mph) or ±5% of reading, whichever is greater; Wind Direction, ±7°. Resolution: Wind Speed/Gust, 0.5 m/s (1.1 mph); Wind Direction, 1°. Starting Threshold: Wind Speed/Gust, =1 m/s (2.2 mph); Wind Direction, 1 m/s (2.2 mph). Length of Smart Sensor Network Cable: 0.5m (1.6’). Operating Temperature Range: -40°F to 158°F (-40°C to 70°C).
Average light intensity over a user-set logging interval from a minimum of 1 second. Measurement range of 0 to 1280 W/m2 over a spectral range of 300 to 1100 nm.
Tipping bucket with magnetic reed switch pivots on metal shaft. UV-stabilized ABS plastic housing. Specifications: Measurement Range: 0 to 4˝ per hour, maximum 4,000 tips per interval. Accuracy: ±4.0%, ±1 rainfall count between 0.01˝ and 2.0˝ per hour; ±5.0%, ±1 rainfall count between 2.0˝ and 4.0˝ per hour. Drift: requires annual field calibration. Length of Smart Sensor Network Cable: 0.5m (1.6´). Dimensions: 9.5˝H x 6.5˝ dia.
Measures temperature and relative humidity. All sensor parameters are stored inside the Smart Sensor, and configuration data information is communicated to the logger without any programming, calibration, or extensive setup needed. Requires protection from rain or direct splashing. Use of a Solar Radiation Shield (89354, sold separately) is strongly recommended. Specifications: Range: Temperature, -40°C to 75°C (-40°F to 167°F); Relative Humidity, 0 to 100% RH at -40°C to 75°C (-40°F to 167°F), exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%. Accuracy: Temperature, ±0.2°C over 0°C to 50°C (0.36°F over 32°F to 122°F); Relative Humidity, ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5%. Resolution: Temperature, 0.02°C at 25°C (0.04°F at 77°F); RH, 0.1% RH at 25°C (77°F). Drift: Temperature, <0.1°C (0.18°F) per year; RH, <1% per year typical, hysteresis 1%. Response Time: Temperature, 5 minutes in air moving 1 m/sec; Relative Humidity, 10 minutes in air moving 1 m/sec with protective cap. Environmental Rating Weatherproof: 0 to 100% RH intermittent condensing environments. For best results, the Temp/RH Smart Sensor should be mounted inside a protective enclosure such as a Solar Radiation Shield (sold separately). Sensor Dimensions: 0.39? x 1.39?.
Includes a 2-Meter Tripod, grounding kit, guy wire kit, 1/2” stake kit for guy wires, 1/4” stake kit for tripod and mast level.
For HOBO® Universal Weather Station PAR Sensor
Protects external sensors from the effects of sunlight and rain to ensure high accuracy measurements. Designed to allow maximum air flow around the sensor, the shield provides 2.5 times faster response time to changing conditions. Works with Temperature and Temperature/Relative Humidity Smart Sensors. Specifications: Wind Resistance: tested in sustained winds up to 80 mph, tested in gusts up to 100 mph. Height: 3.5˝; 6.25˝ with bracket.
Provides mounting for one wind sensor.
Provides mounting for two wind sensors.
For connecting a user-supplied power source to a HOBO RX3000 Remote Monitoring Station to charge the station’s internal battery. Voltage: 5V DC minimum to 17V DC maximum. Minimum Supply Output Power: 6 watt (typical power used is much less). Cable Length: 6 ft.
Accommodates moderately sloping terrain and includes a 3-Meter Tripod, a grounding kit, a guy wire kit, 1/2” stake kit, and mast level.
For HOBO® Universal Weather Station PAR Sensor.
Ideal for very cloudy locations, higher latitudes, and/or when connecting analog sensors with high excitation power requirements. Dimensions: 16.85˝ x 14.06˝ x 1.18˝.
Suitable for most locations. Dimensions: 8.74˝ x 10.63˝ x 0.71˝.
