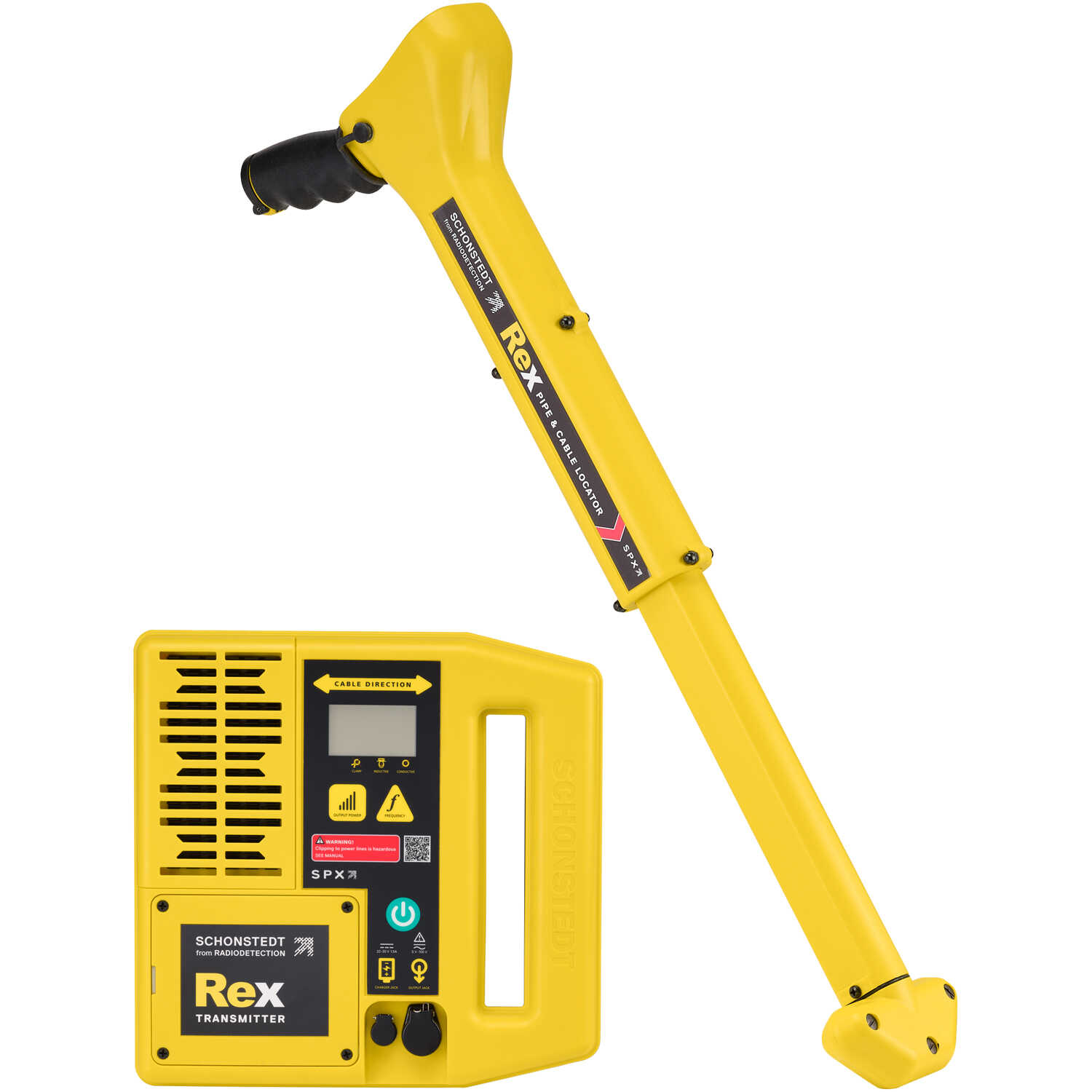

Schonstedt Rex Multi-Frequency Pipe and Cable Locator

This multi-frequency pipe and cable locator is an ideal choice for all utilities including electrical, telecommunications, water, sewer, and gas. Affordable and ultra-lightweight, the Rex offers 512 Hz, 33 kHz, and 82 kHz operating frequencies plus 50/60 Hz passive and 512 Hz sonde detection. The receiver features automatic and manual gain plus depth measurement. The Rex is adjustable with 5 watts of power and 4 power levels, and the transmitter’s backlit display features easy-to-read indicators. Includes receiver, transmitter, holster, conductive clip assembly with standard conductive clips, soft carrying case for receiver, ground stake, power supply and cord for transmitter charging, and instruction manual. Rated IP54 for water and dust resistance. Three-year manufacturer’s warranty.

Brand: Schonstedt
MPN: Rex
UPC:
UNSPSC: 41114200
Weight:

Receiver - Operating Frequency: 512 Hz, 33 kHz, or 82 kHz. Passive Detection: 50/60 Hz. Sonde Detection: 512 Hz. Battery: One 9V Alkaline. Battery Life: 12 hours (intermittent usage). Audio Output: 10 to 1500 Hz determined by signal strength. Weight (including batteries): 2.8 lbs. Operating Temperature: -4°F to 140°F (-20°C to 70°C). Dimensions: Closed, 17.5˝L; Extended, 27.7˝L. Maximum Depth Capability: Approximately 19´ (5.8 m); Sonde mode approximately 5´ to 15´ (1.5 to 4.2 m). Transmitter - Operating Frequency: 512 Hz, 33 kHz, or 82 kHz. Operating Modes: Conductive, Inductive. Output Power: 512 Hz - 1/2, 1, 2, or 5 W; 33 kHz - 1/2, 1, 2, or 5 W; 82 kHz - 1/2 or 1 W (FCC limited). Charging: Internal Smart Charger powered by AC/DC power adapter. Battery: Rechargeable NiMH pack (12V). Battery Life: 8 hours (intermittent usage). Overall Dimensions: 10˝W x 10.25˝D x 1.75˝H. Weight: 3.5 lbs. Operating Temperature: -4ºF to 140ºF (-20ºC to 70ºC). Backlighting: White LED array.
