Terraplus KT-10H Dedicated Magnetic Susceptibility Meter with Circular Coil Terraplus KT-10Hv2S
Content:
Terraplus Logo

Terraplus KT-10 Dedicated Magnetic Susceptibility Meters




Availability: In Stock
Stock Number: 33132
Ben Meadows:
    $***.**
  • Description
  • Specifications
  • Reviews
  • Q&A

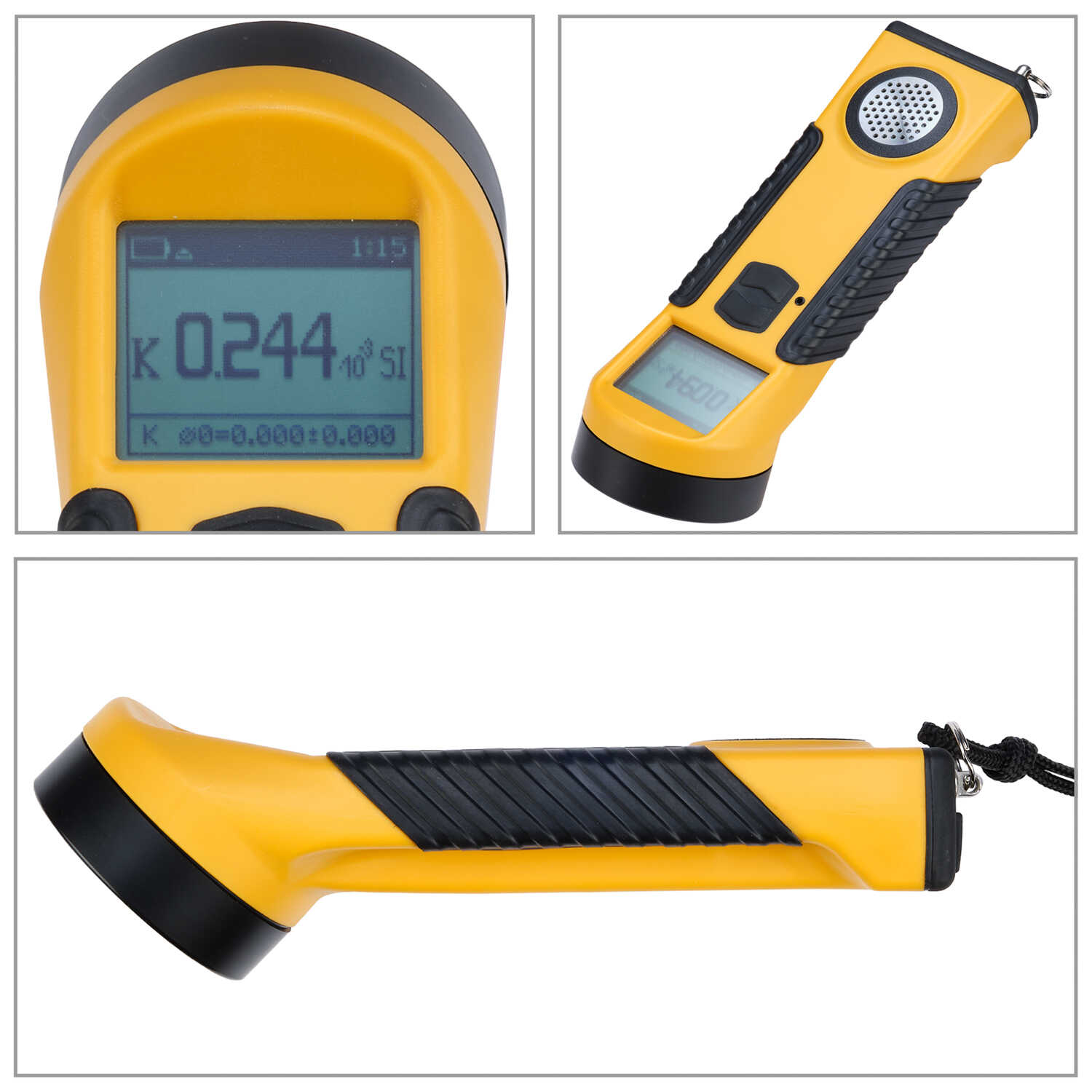

Terraplus KT-10H Dedicated Magnetic Susceptibility Meter with Circular Coil

Sensitivity: 10-7 SI units. Measurement Range: 0.0001 x 10-3 to 1999.99 x 10-3 SI units. Pin mode available for measuring uneven surfaces.

The KT-10 meters measure the magnetic susceptibility of a geological sample or core. These stand-alone meters with display and data storage are available in circular and rectangular coil designs to measure large or small sized samples, respectively. They also produce repeatable results and features include three modes of operation (discrete measurements, continuous scanning or borehole); split and full core corrections for standard drill rod diameters and non-standard sizes; the ability to input information to correlate measurements to their appropriate depths; a built-in microphone to record voice notes with measurements; and the GeoView data management/visualization software. Their compact and rugged design make them ideal instruments for use in the field, core shack, or lab.

Note: Calibration pad values are approximate and may vary from pad to pad.

Product Notes:
  • Restricted Sales: R93 Cannot be sold Internationally
  • Restricted Sales: R93 Cannot be sold Internationally
  • Restricted Sales: R93 Cannot be sold Internationally
Brand: Terraplus
MPN: KT-10Hv2S
UPC:
UNSPSC: 41113900
Weight:

Operating Frequency: 10 kHz. Measurement Frequency: 20 readings per second in Scan Mode, storing 4 averaged readings per second. Display: High contrast LCD display with 104 x 88 pixels. Memory: 8 GB: 4,000 total records stored (4,000 scanner measurements, with up to 480 data points per record; 4,000 discrete measurements, with 120 seconds of voice notes per reading). Note: discrete and scan records can be combined. Control: One button with up / down functionality. Data Input/Output: USB and Bluetooth (GPS pairing). Power Supply: 2 AA batteries (alkaline or rechargeable). Battery Life: Up to 2,000 measurements without voice recorder while using rechargeable batteries (3,000 measurements with alkaline batteries). Operating Temperature Range: -20°C to 60°C. Meter Dimensions: 200mm x 57 mm x 32 mm. Coil Dimensions: Circular Coil – 65 mm (diameter); Rectangular Coil – 65 mm (length) x 32 mm (width). Weight: 0.33 kg with 2 AA alkaline batteries installed.
Be the first person to review this product.

We encourage our customers to let us know what experiences they have had with our products, whether good or bad.  By submitting a review, you can share your experiences with others and also provide valuable feedback to us as well. With just a few simple steps, you can add your review of this product.


Thank you for sharing your review of this product.
An error has occured. Please try again.
– See Less


Have a Question About This Product? Have A Question About This Product?
Ask a Question
Thank you. A representative will respond to you by email as soon as possible. Typically, we are able to respond within 1 business day.
An error has occured. Please try again.
Options and Accessories – See Less


Terraplus Magnetic Susceptibility Calibration Pads – Low Susceptibility Range

Use to recalibrate the magnetic susceptibility measurements or to verify the meter's readings. Low Susceptibility Range: 34 x 10-3 SI. Diameter: 145 mm. Height: 70 mm. Weight: 2.65 kg. Color: Orange. Note: Calibration pad values are approximate and may vary from pad to pad.

Item#: 33164
    $***.**
 Add To Cart

Terraplus Magnetic Susceptibility Calibration Pads – High Susceptibility Range

For PLUS Upgrade Option Only. Use to recalibrate the magnetic susceptibility measurements or to verify the meter's readings. High Susceptibility Range: 2,500x10-3 SI. Diameter: 145 mm. Height: 70 mm. Weight: 2.65 kg. Color: Blue. Note: Calibration pad values are approximate and may vary from pad to pad.

Item#: 33165
    $***.**
 Add To Cart
